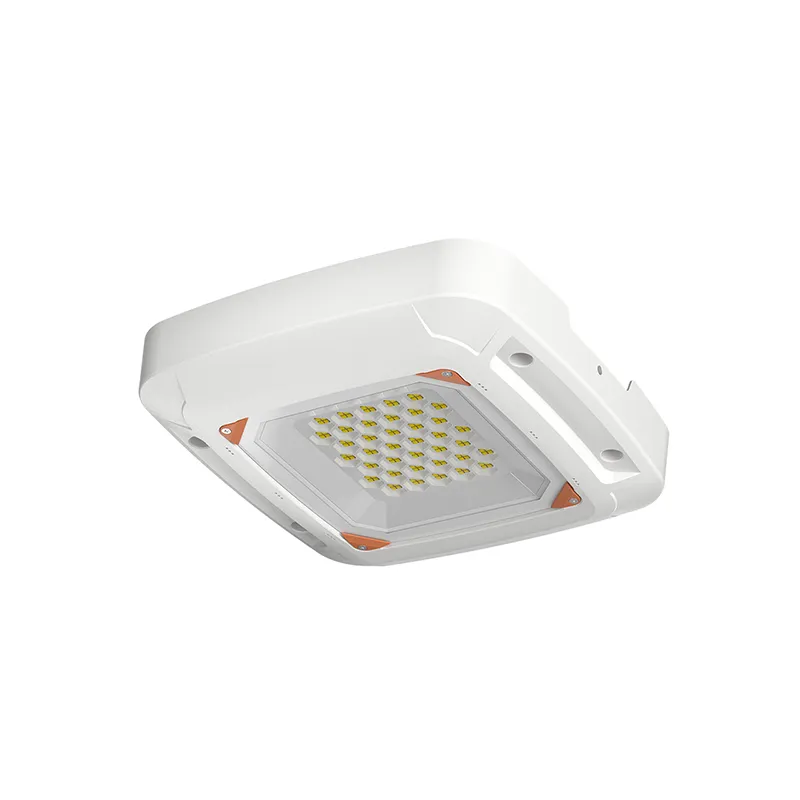

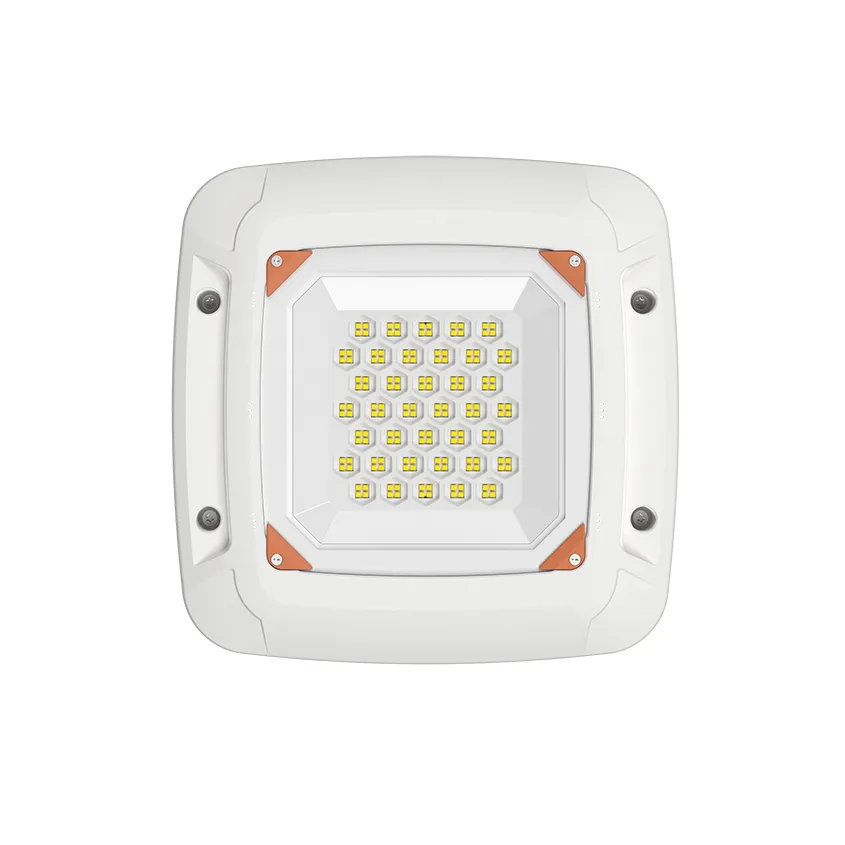

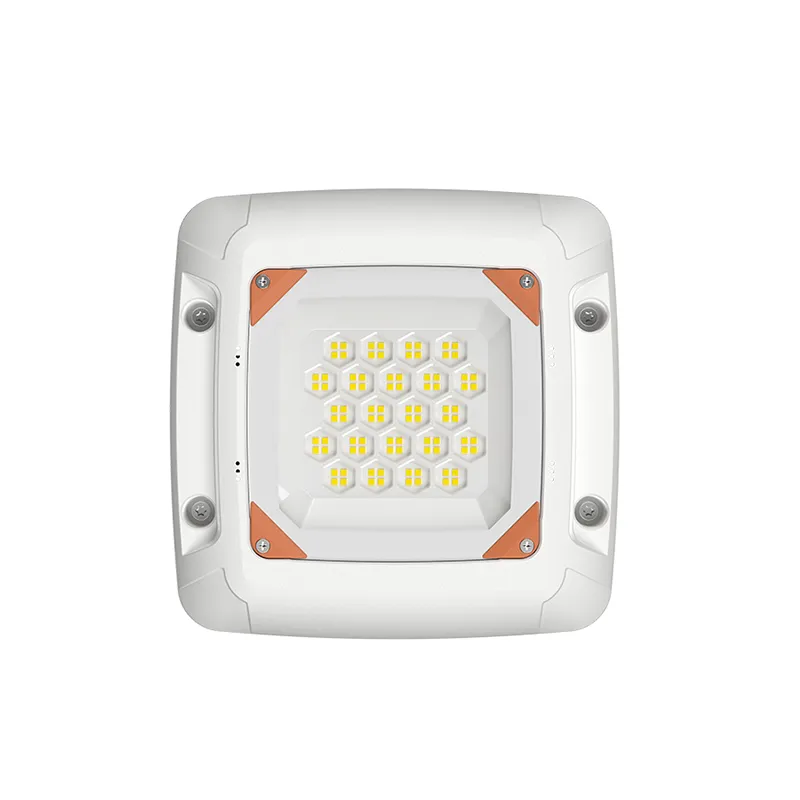

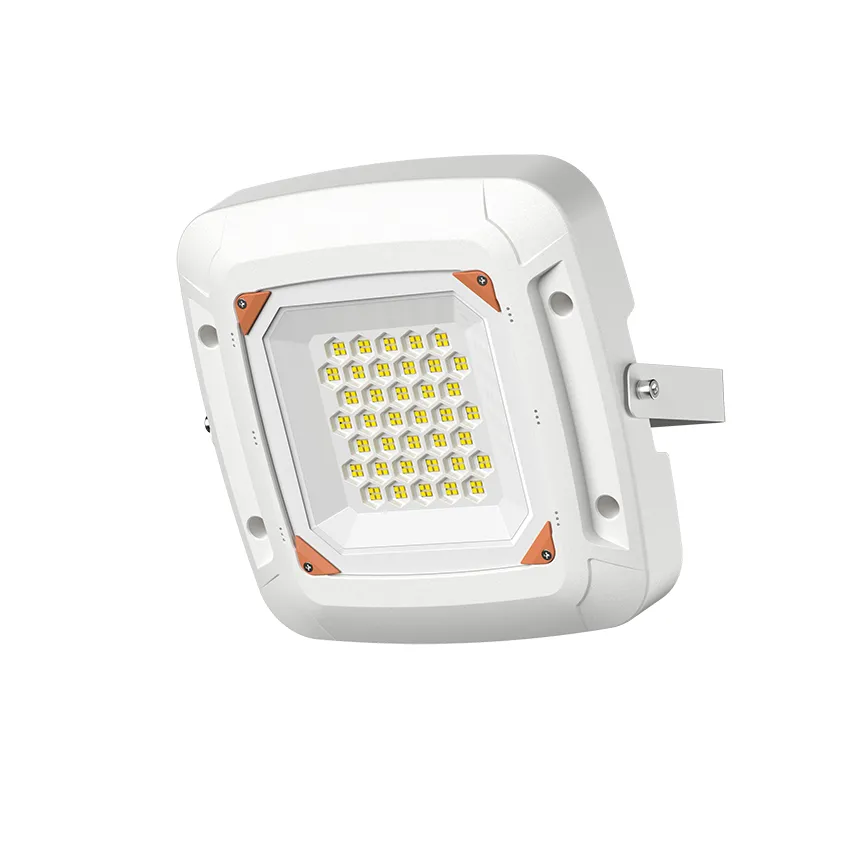

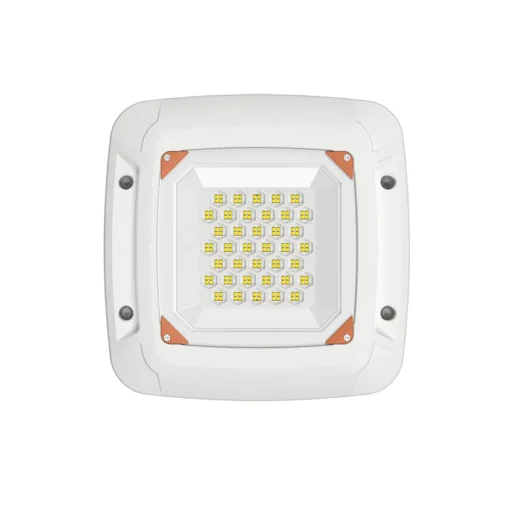

Series 3W is a low-glare die-cast low bay LED canopy light with modern shape and compact structure, which can be used in gas stations, warehouses, supermarket corridors and so on. 2WIN is a exporter of excellent outdoor high power LED lights.
UGR<13
Suitable for cold areas

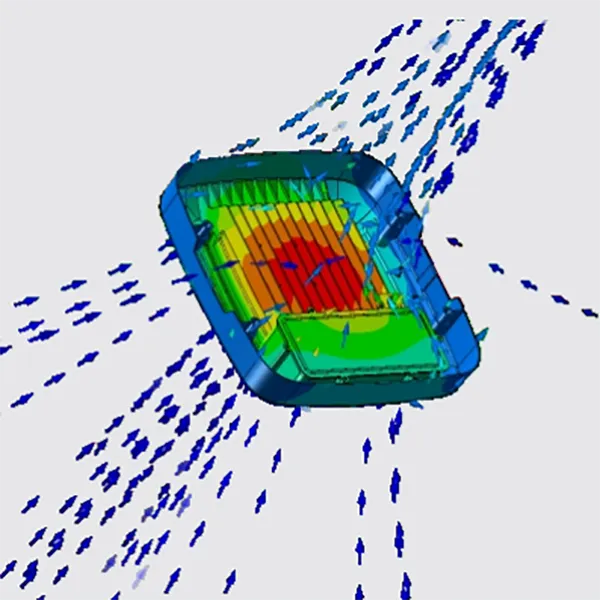

Die-Cast Aluminum Heat Dissipation
0-60 Degree
| Model： | 2GS-50-3V | 2GS-100-3V | 2GS-120-2V |
|---|---|---|---|
| Wattage: | 50W | 100W | 120W |
| Led Source: | SMD3030 | SMD3030 | SMD3030 |
| Led Qnty: | 88 PCS | 152 PCS | 152 PCS |
| Working voltage： | AC100-277V | AC100-277V | AC100-277V |
| Driver brand options | Meanwell | Meanwell | Meanwell |
| Optical lens options | 30/60/90/120° | 30/60/90/120° | 30/60/90/120° |
| Lumen efficiency： | 140lm/w | 140lm/w | 140lm/w |
| Luminous | 7000LM | 14000LM | 16800LM |
| Power Factor: | >0.95 | >0.95 | >0.95 |
| Correlated Color Temperature： | 3000K-6500K | 3000K-6500K | 3000K-6500K |
| Color rendering index： | ≥70Ra | ≥70Ra | ≥70Ra |
| SDCM | <5 | <5 | <5 |
| IP Rating: | IP66 | IP66 | IP66 |
| Housing Finish | Polyester powder coating | Polyester powder coating | Polyester powder coating |
| Standard colour(s) | White | White | White |
| Materials | AL+glass+PC | AL+glass+PC | AL+glass+PC |
| Certificates | SAA/CE/RoHS | SAA/CE/RoHS | SAA/CE/RoHS |
| Warranty | 5 years | 5 years | 5 years |
