Series 2W 250W Single Module LED high mast Light

Series 2W 250W single-module LED high mast light is spliced from single 250W module, which can be freely combined to meet the different requirements of customers, there are 4 kinds of beam angles of 15, 30, 45, 60 degrees, the conventional power of 250W, 500W, 750W, 1000W, 1500W,2000W according to the different project case scenarios customized for different power and arrangement, we have a lot of experience in this area. We have rich experience in this area.

DATASHEEP

Model：	RHM-250-2W	RHM-500-2W	RHM-750-2W	RHM-1000-2W	RHM-1500-2W
Wattage:	250W	500W	750W	1000W	1500W
Led Source:	3030	3030	3030	3030	3030
Led Qnty:	384 PCS	766 PCS	1149 PCS	1532PCS	2298PCS
Working voltage：	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Driver brand options	Meanwell	Meanwell	Meanwell	Meanwell	Meanwell
Optical lens options	15/30/45/60°	15/30/45/60°	15/30/45/60°	15/30/45/60°	15/30/45/60°
Lumen efficiency：	160lm/w	160lm/w	160lm/w	160lm/w	160lm/w
Power Factor:	>0.95	>0.95	>0.95	>0.95	>0.95
Correlated Color Temperature：	3000K-6500K	3000K-6500K	3000K-6500K	3000K-6500K	3000K-6500K
Color rendering index：	≥70Ra	≥70Ra	≥70Ra	≥70Ra	≥70Ra
SDCM	<5	<5	<5	<5	<5
IP Rating:	IP66	IP66	IP66	IP66	IP66
Housing Finish	Polyester powder coating	Polyester powder coating	Polyester powder coating	Polyester powder coating	Polyester powder coating
Standard colour(s)	Black	Black	Black	Black	Black
Materials	Aluminum Alloy+Tempered glass+PC	Aluminum Alloy+Tempered glass+PC	Aluminum Alloy+Tempered glass+PC	Aluminum Alloy+Tempered glass+PC	Aluminum Alloy+Tempered glass+PC
Certificates	CE/RoHS/Saa	CE/RoHS/Saa	CE/RoHS/Saa	CE/RoHS/Saa	CE/RoHS/Saa
Warranty	5 years	5 years	5 years	5 years	5 years

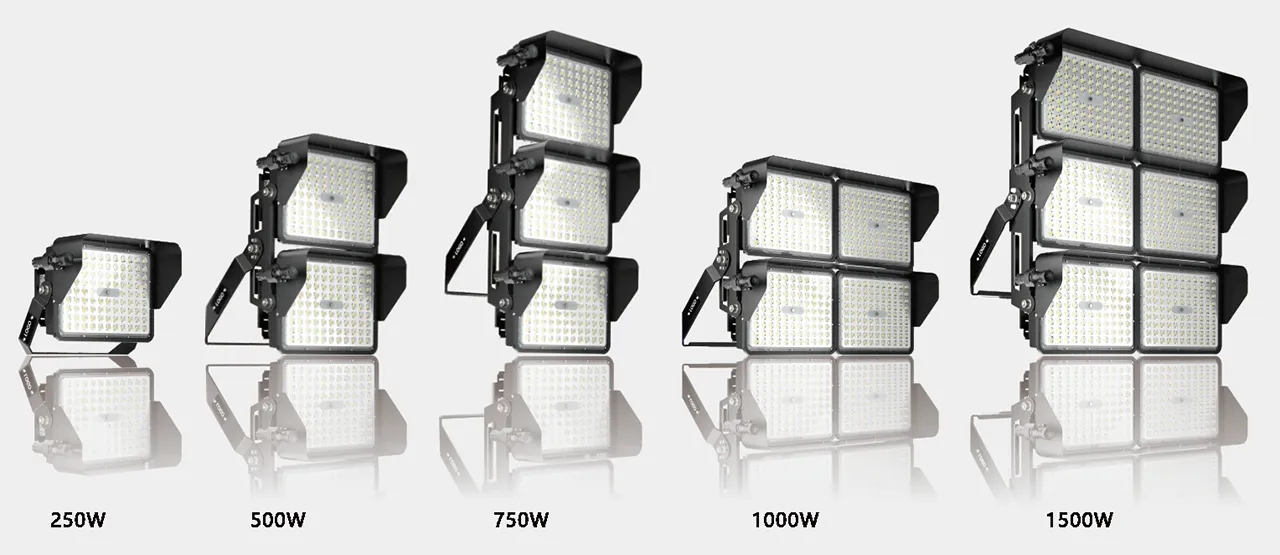

Regular power and combinations of the 250w single Module LED high mast Light

Series 2w led high mast light is a single 250W module spliced together, can be freely combined to meet the different requirements of customers. Currently the conventional power of 250w, 500w, 750w, 1000w, 1500w, according to the size of the scene and the height of the pole can be customized to different power and arrangement of combinations, we have a lot of experience in this area, welcome to contact us.

series 2w 250W Single Module LED high mast Light 2_1280_555

Size

series 2w 250W Single Module LED high mast Light 1_1280_1639

DOWNLOADS

catalog

manual

ies
