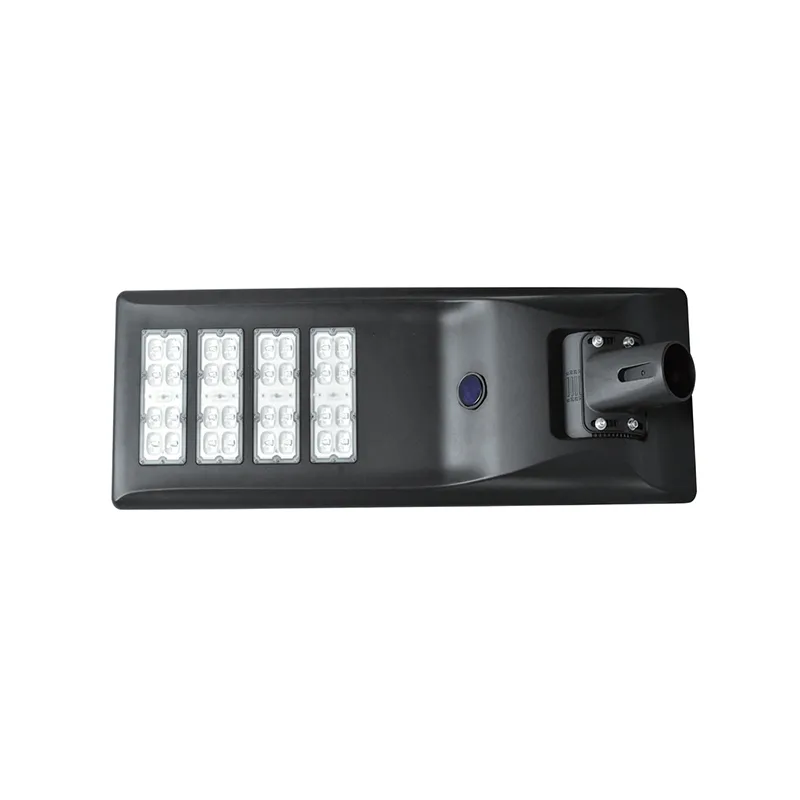

Series 1W solar LED Street Light

Power range 40W,60W,80W
Light Efficiency up to 180lm/w
Beam angle T2
IP66&IK10 for outdoor applications
Die-casting housing and UV resistant PC lens
Three kinds of power to meet different lighting height requirements
Smart Control: Motion sensor

2WIN Series 1W LED Flood Light (0 downloads )

Series 1W all in one solar LED Street Light

Series 1W is a street light system integrating solar panel, LED light, battery, controller and other components. It uses solar panels to convert sunlight into electricity, which is stored in the battery, and then controls the brightness and working mode of the LED light through the controller to realize the lighting function of the street light. series 1w integrated solar LED street light is not limited by power supply from the grid and can operate independently, which is suitable for remote areas or areas with unstable power supply, and has strong applicability and reliability. series 1w integrated solar LED street light does not need to arrange cables, so it is easy and quick to install, which reduces the construction cost and cycle time.

DATASHEEP

Model	2SST-40-1W	2SST-60-1W	2SST-80-1W
Mono solar panel	18V,37W	18V,44W	18V,57W
Batery capacity	12.8V,12AH	12.8V,18AH	12.8V,24AH
CCT	2700K-6500K
Brightness	180LM/W
Charging Time	6~8 hours by bright sunlight
Working Time	12-15 hours(5-7rainy days)
Control Model	Time control+Microwave inducton or Infrared induction
IP Ratng	IP66
Mountng Height	4-6m	5-7m	6-8m
Installing space between 2 lighting	10-20m	15-25m	20-30m
Mountng hole	φ78mm
Warranty	3Years
Product Size(mm)	697361209	846361209	1096361209
Net Weight(kg)	7.7	9.5	11.7

Advantage

Size

DOWNLOADS

catalog

manual

ies
